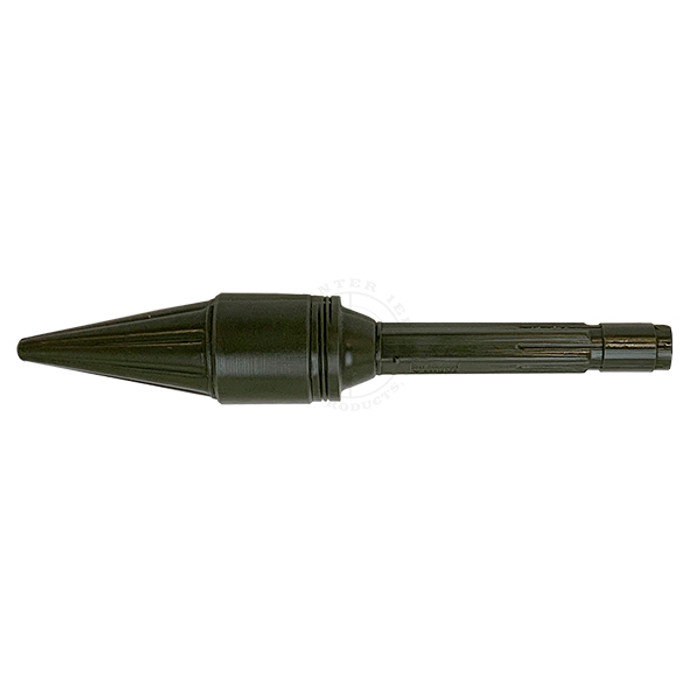

Display dummy rocket for the RPG-2.
Only one type of grenade, the PG-2 HEAT (High Explosive Anti-Tank), was used in the RPG-2.
The propellant, consisting of granulated powder was in a rolled cardboard case treated with wax that had to be attached to the grenade before loading. Once attached to the propellant charge, the grenade was inserted into the smooth-bore launcher from the front. A tab on the body of the grenade indexes in a notch cut in the tube so that the primer in the propelling charge aligns with the firing pin and hammer mechanism.
To fire the RPG-2, the grenadier cocked an external hammer with his thumb, aimed, and pulled the trigger to fire. Upon launch, six stabilizer fins unfolded from the grenade. The weapon was accurate, depending on the soldier's experience, against stationary targets up to 150 meters and against moving targets at ranges of less than 100 meters. It had a muzzle velocity of 84 meters per second and could penetrate armor up to 180 millimeters (7.17 inches) thick.
The RPG-2 anti tank grenade launcher is a simple 40 millimeter steel tube into which the PG-2 grenade is fitted. The tailboom of the grenade inserts into the launcher. The diameter of the PG-2 warhead is 80mm. The center section of the tube has a thin wooden covering to protect the user from the heat generated by the grenade launch. The wooden covering also makes using the weapon in extreme cold conditions easier.
The total length of the weapon with a grenade fitted was 120 centimeters (47 inches) and it weighed 4.48 kilograms (9.8 pounds). Only a simple iron sight was provided for aiming.
